Seagate Hard Disk FARM Log
Hard Disk Sentinel Pro (version 6.20.8 and newer) can detect and read the internal Seagate Field Access Reliability Metrics log (FARM log) of Seagate SATA and SAS hard disk drives (if supported by the drive). The Seagate Field Access Reliability Metrics log (FARM) log contains details about the hard disk drive, including but not limited to the power on time, number of heads, recording type (CMR / SMR), error counters / statistics and so.
To check the internal Field Access Reliability Metrics log (FARM log) of the Seagate drive, please select the drive and use the Disk menu -> Device Specific Information function which reads the internal error logs, test logs and the FARM log - so you can examine all details:

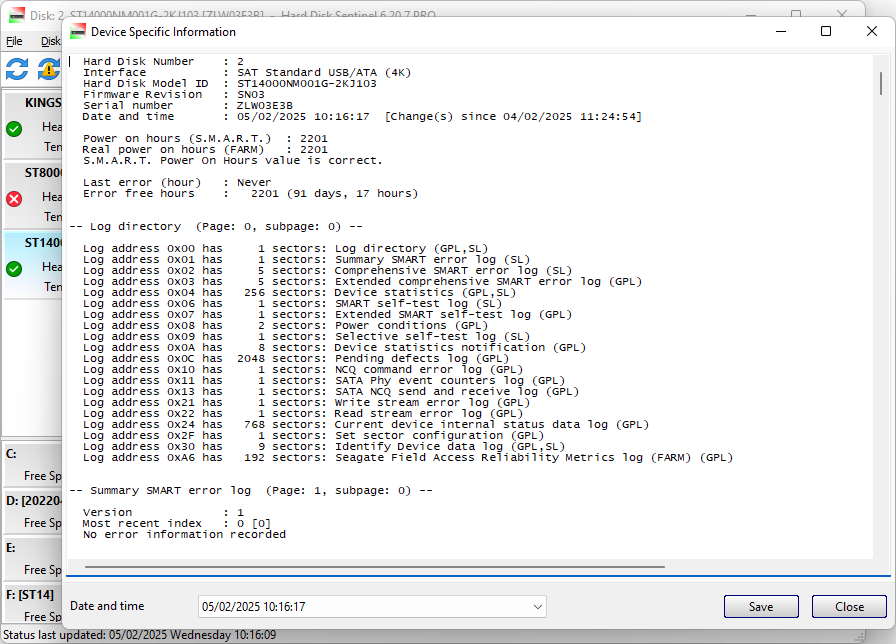

To make things very simple and easy, Hard Disk Sentinel Pro automatically verifies the accuracy of the power on time value reported by the drive via "normal" S.M.A.R.T. attribute and compares to the power on hours value reported by the Seagate FARM log and displays both values automatically on the top of the window and the results:
if the value is correct and accurate
if the power on hours value altered/cleared/reset (and what is the difference, eg. how long the drive worked before the value reset)
In addition, the FARM log contains detailed information and statistics about the drive lifetime, operation environment statistics like temperature, power use, humidity (if supported by the drive). The following example is a complete Seagate Field Access Reliability Metrics log (FARM log) saved from a Seagate ST14000NM001G-2KJ103 SATA hard disk drive:
-- Seagate Field Access Reliability Metrics log (FARM) (Page: 166 / 0xA6) --
FARM Log Page 0: Log Header
FARM Log Version: 3.7
Pages Supported: 6
Log Size: 98304
Page Size: 16384
Heads Supported: 24
Number of Copies: 0
Reason for Frame Capture: 0
FARM Log Page 1: Drive Information
Serial Number: ZLW03E3B
World Wide Name: 5000C500C784A6FE
Device Interface: SATA
Device Capacity in Sectors: 27344764928
Physical Sector Size: 4096
Logical Sector Size: 512
Device Buffer Size: 268435456
Number of Heads: 16
Device Form Factor: 3.5 inches
Rotation Rate: 7200 rpm
Firmware Rev: SN03
ATA Security State (ID Word 128): 0x0021
ATA Features Supported (ID Word 78): 0x00CC
ATA Features Enabled (ID Word 79): 0x0040
Power on Hours: 2201
Spindle Power on Hours: 2198
Head Flight Hours: 1956
Head Load Events: 364
Power Cycle Count: 16
Hardware Reset Count: 407
Spin-up Time: 10 ms
Time to ready of the last power cycle: 22490 ms
Time drive is held in staggered spin: 9320 ms
Model Number: ST14000NM001G-2KJ103
Drive Recording Type: CMR
Max Number of Available Sectors for Reassignment: 57754
Assembly Date (YYWW):
Depopulation Head Mask: 0x0000000000000000
Head Flight Hours, Actuator 1: 0
Head Load Events, Actuator 1: 0
HAMR Data Protect Status: 0
Regen Head Mask: 0x0000000000000000
Power-on Hours of most recent FARM frame save: 0
Power-on Hours of 2nd most recent FARM frame save: 0
Sequential Or Before Required for active zone configuration: 0
Sequential Write Required for active zone configuration: 0
HSMR SWR capacity LBAs: 0
FARM Log Page 2: Workload Statistics
Total Number of Read Commands: 192233214
Total Number of Write Commands: 264009353
Total Number of Random Read Commands: 4411490
Total Number of Random Write Commands: 147936605
Total Number Of Other Commands: 168442
Logical Sectors Written: 69990858072
Logical Sectors Read: 94724031488
Number of dither events during current power cycle: 13285
Number of times dither was held off during random workloads: 13499
Number of times dither was held off during sequential workloads: 298
Number of Read commands from 0-3.125% of LBA space for last 3 SMART Summary Frames: 0
Number of Read commands from 3.125-25% of LBA space for last 3 SMART Summary Frames: 0
Number of Read commands from 25-75% of LBA space for last 3 SMART Summary Frames: 0
Number of Read commands from 75-100% of LBA space for last 3 SMART Summary Frames: 0
Number of Write commands from 0-3.125% of LBA space for last 3 SMART Summary Frames: 0
Number of Write commands from 3.125-25% of LBA space for last 3 SMART Summary Frames: 0
Number of Write commands from 25-75% of LBA space for last 3 SMART Summary Frames: 0
Number of Write commands from 75-100% of LBA space for last 3 SMART Summary Frames: 0
FARM Log Page 3: Error Statistics
Unrecoverable Read Errors: 0
Unrecoverable Write Errors: 0
Number of Reallocated Sectors: 0
Number of Read Recovery Attempts: 0
Number of Mechanical Start Failures: 0
Number of Reallocated Candidate Sectors: 0
Number of ASR Events: 5
Number of Interface CRC Errors: 0
Spin Retry Count: 0
Spin Retry Count Normalized: 100
Spin Retry Count Worst: 100
Number of IOEDC Errors (Raw): 0
CTO Count Total: 184
CTO Count Over 5s: 2
CTO Count Over 7.5s: 2
Total Flash LED (Assert) Events: 0
Index of the last Flash LED: 0
Flash LED Event 0:
Event Information: 0x0000000000000000
Timestamp of Event 0 (hours): 0
Power Cycle Event 0: 0
Flash LED Event 1:
Event Information: 0x0000000000000000
Timestamp of Event 1 (hours): 0
Power Cycle Event 1: 0
Flash LED Event 2:
Event Information: 0x0000000000000000
Timestamp of Event 2 (hours): 0
Power Cycle Event 2: 0
Flash LED Event 3:
Event Information: 0x0000000000000000
Timestamp of Event 3 (hours): 0
Power Cycle Event 3: 0
Flash LED Event 4:
Event Information: 0x0000000000000000
Timestamp of Event 4 (hours): 0
Power Cycle Event 4: 0
Flash LED Event 5:
Event Information: 0x0000000000000000
Timestamp of Event 5 (hours): 0
Power Cycle Event 5: 0
Flash LED Event 6:
Event Information: 0x0000000000000000
Timestamp of Event 6 (hours): 0
Power Cycle Event 6: 0
Flash LED Event 7:
Event Information: 0x0000000000000000
Timestamp of Event 7 (hours): 0
Power Cycle Event 7: 0
Uncorrectable errors: 0
Cumulative Lifetime Unrecoverable Read errors due to ERC: 0
Cum Lifetime Unrecoverable by head 0:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 1:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 2:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 3:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 4:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 5:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 6:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 7:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 8:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 9:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 10:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 11:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 12:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 13:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 14:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
Cum Lifetime Unrecoverable by head 15:
Cumulative Lifetime Unrecoverable Read Repeating: 0
Cumulative Lifetime Unrecoverable Read Unique: 0
FARM Log Page 4: Environment Statistics
Current Temperature (Celsius): 53
Highest Temperature: 62
Lowest Temperature: 26
Average Short Term Temperature: 53
Average Long Term Temperature: 46
Highest Average Short Term Temperature: 57
Lowest Average Short Term Temperature: 38
Highest Average Long Term Temperature: 46
Lowest Average Long Term Temperature: 41
Time In Over Temperature (minutes): 42
Time In Under Temperature (minutes): 0
Specified Max Operating Temperature: 60
Specified Min Operating Temperature: 5
Current Relative Humidity: 0
Current Motor Power: 2182
Current 12 volts: 12.156
Minimum 12 volts: 12.001
Maximum 12 volts: 12.183
Current 5 volts: 5.060
Minimum 5 volts: 5.045
Maximum 5 volts: 5.069
12V Power Average: 0.000
12V Power Minimum: 0.000
12V Power Maximum: 0.000
5V Power Average: 0.000
5V Power Minimum: 0.000
5V Power Maximum: 0.000
FARM Log Page 5: Reliability Statistics
Error Rate (SMART Attribute 1 Raw): 0x000000000A88E958
Error Rate (SMART Attribute 1 Normalized): 82
Error Rate (SMART Attribute 1 Worst): 64
Seek Error Rate (SMART Attr 7 Raw): 0x000000000708DC8D
Seek Error Rate (SMART Attr 7 Normalized): 81
Seek Error Rate (SMART Attr 7 Worst): 60
High Priority Unload Events: 11
Helium Pressure Threshold Tripped: 0
LBAs Corrected By Parity Sector: 0
Disc Slip Recalibrations Performed: 0
DVGA Skip Write Detect by Head 0: 0
DVGA Skip Write Detect by Head 1: 0
DVGA Skip Write Detect by Head 2: 0
DVGA Skip Write Detect by Head 3: 0
DVGA Skip Write Detect by Head 4: 0
DVGA Skip Write Detect by Head 5: 0
DVGA Skip Write Detect by Head 6: 0
DVGA Skip Write Detect by Head 7: 0
DVGA Skip Write Detect by Head 8: 0
DVGA Skip Write Detect by Head 9: 0
DVGA Skip Write Detect by Head 10: 0
DVGA Skip Write Detect by Head 11: 0
DVGA Skip Write Detect by Head 12: 0
DVGA Skip Write Detect by Head 13: 0
DVGA Skip Write Detect by Head 14: 0
DVGA Skip Write Detect by Head 15: 0
RVGA Skip Write Detect by Head 0: 0
RVGA Skip Write Detect by Head 1: 0
RVGA Skip Write Detect by Head 2: 0
RVGA Skip Write Detect by Head 3: 0
RVGA Skip Write Detect by Head 4: 0
RVGA Skip Write Detect by Head 5: 0
RVGA Skip Write Detect by Head 6: 0
RVGA Skip Write Detect by Head 7: 0
RVGA Skip Write Detect by Head 8: 0
RVGA Skip Write Detect by Head 9: 0
RVGA Skip Write Detect by Head 10: 0
RVGA Skip Write Detect by Head 11: 0
RVGA Skip Write Detect by Head 12: 0
RVGA Skip Write Detect by Head 13: 0
RVGA Skip Write Detect by Head 14: 0
RVGA Skip Write Detect by Head 15: 0
FVGA Skip Write Detect by Head 0: 0
FVGA Skip Write Detect by Head 1: 0
FVGA Skip Write Detect by Head 2: 0
FVGA Skip Write Detect by Head 3: 0
FVGA Skip Write Detect by Head 4: 0
FVGA Skip Write Detect by Head 5: 0
FVGA Skip Write Detect by Head 6: 0
FVGA Skip Write Detect by Head 7: 0
FVGA Skip Write Detect by Head 8: 0
FVGA Skip Write Detect by Head 9: 0
FVGA Skip Write Detect by Head 10: 0
FVGA Skip Write Detect by Head 11: 0
FVGA Skip Write Detect by Head 12: 0
FVGA Skip Write Detect by Head 13: 0
FVGA Skip Write Detect by Head 14: 0
FVGA Skip Write Detect by Head 15: 0
Skip Write Detect Threshold Exceeded by Head 0: 0
Skip Write Detect Threshold Exceeded by Head 1: 0
Skip Write Detect Threshold Exceeded by Head 2: 0
Skip Write Detect Threshold Exceeded by Head 3: 0
Skip Write Detect Threshold Exceeded by Head 4: 0
Skip Write Detect Threshold Exceeded by Head 5: 0
Skip Write Detect Threshold Exceeded by Head 6: 0
Skip Write Detect Threshold Exceeded by Head 7: 0
Skip Write Detect Threshold Exceeded by Head 8: 0
Skip Write Detect Threshold Exceeded by Head 9: 0
Skip Write Detect Threshold Exceeded by Head 10: 0
Skip Write Detect Threshold Exceeded by Head 11: 0
Skip Write Detect Threshold Exceeded by Head 12: 0
Skip Write Detect Threshold Exceeded by Head 13: 0
Skip Write Detect Threshold Exceeded by Head 14: 0
Skip Write Detect Threshold Exceeded by Head 15: 0
Write Power On (hrs) by Head 0: 11700
Write Power On (hrs) by Head 1: 10664
Write Power On (hrs) by Head 2: 10074
Write Power On (hrs) by Head 3: 10284
Write Power On (hrs) by Head 4: 9657
Write Power On (hrs) by Head 5: 10445
Write Power On (hrs) by Head 6: 9882
Write Power On (hrs) by Head 7: 10485
Write Power On (hrs) by Head 8: 9741
Write Power On (hrs) by Head 9: 10124
Write Power On (hrs) by Head 10: 9319
Write Power On (hrs) by Head 11: 10243
Write Power On (hrs) by Head 12: 9748
Write Power On (hrs) by Head 13: 9887
Write Power On (hrs) by Head 14: 10750
Write Power On (hrs) by Head 15: 9915
MR Head Resistance from Head 0: 440
MR Head Resistance from Head 1: 428
MR Head Resistance from Head 2: 449
MR Head Resistance from Head 3: 500
MR Head Resistance from Head 4: 472
MR Head Resistance from Head 5: 456
MR Head Resistance from Head 6: 372
MR Head Resistance from Head 7: 528
MR Head Resistance from Head 8: 500
MR Head Resistance from Head 9: 507
MR Head Resistance from Head 10: 455
MR Head Resistance from Head 11: 548
MR Head Resistance from Head 12: 346
MR Head Resistance from Head 13: 424
MR Head Resistance from Head 14: 442
MR Head Resistance from Head 15: 436
Second MR Head Resistance by Head 0: 440
Second MR Head Resistance by Head 1: 428
Second MR Head Resistance by Head 2: 449
Second MR Head Resistance by Head 3: 500
Second MR Head Resistance by Head 4: 472
Second MR Head Resistance by Head 5: 456
Second MR Head Resistance by Head 6: 372
Second MR Head Resistance by Head 7: 528
Second MR Head Resistance by Head 8: 500
Second MR Head Resistance by Head 9: 507
Second MR Head Resistance by Head 10: 455
Second MR Head Resistance by Head 11: 548
Second MR Head Resistance by Head 12: 346
Second MR Head Resistance by Head 13: 424
Second MR Head Resistance by Head 14: 442
Second MR Head Resistance by Head 15: 436
Number of Reallocated Sectors by Head 0: 0
Number of Reallocated Sectors by Head 1: 0
Number of Reallocated Sectors by Head 2: 0
Number of Reallocated Sectors by Head 3: 0
Number of Reallocated Sectors by Head 4: 0
Number of Reallocated Sectors by Head 5: 0
Number of Reallocated Sectors by Head 6: 0
Number of Reallocated Sectors by Head 7: 0
Number of Reallocated Sectors by Head 8: 0
Number of Reallocated Sectors by Head 9: 0
Number of Reallocated Sectors by Head 10: 0
Number of Reallocated Sectors by Head 11: 0
Number of Reallocated Sectors by Head 12: 0
Number of Reallocated Sectors by Head 13: 0
Number of Reallocated Sectors by Head 14: 0
Number of Reallocated Sectors by Head 15: 0
Number of Reallocation Candidate Sectors by Head 0: 0
Number of Reallocation Candidate Sectors by Head 1: 0
Number of Reallocation Candidate Sectors by Head 2: 0
Number of Reallocation Candidate Sectors by Head 3: 0
Number of Reallocation Candidate Sectors by Head 4: 0
Number of Reallocation Candidate Sectors by Head 5: 0
Number of Reallocation Candidate Sectors by Head 6: 0
Number of Reallocation Candidate Sectors by Head 7: 0
Number of Reallocation Candidate Sectors by Head 8: 0
Number of Reallocation Candidate Sectors by Head 9: 0
Number of Reallocation Candidate Sectors by Head 10: 0
Number of Reallocation Candidate Sectors by Head 11: 0
Number of Reallocation Candidate Sectors by Head 12: 0
Number of Reallocation Candidate Sectors by Head 13: 0
Number of Reallocation Candidate Sectors by Head 14: 0
Number of Reallocation Candidate Sectors by Head 15: 0
FARM information about Seagate Serial Attached SCSI (SAS) hard disks
Similarly to Serial-ATA (S-ATA) hard disk drives, newer Seagate Serial Attached SCSI (SAS) hard disks (for example EXOS 7E10 models) may also support Field Access Reliability Metrics log (FARM) log and if supported, Hard Disk Sentinel reads and displays the information when the Disk menu -> Device Specific Information function used. The power on time verified and the result immediately displayed on the top.
In addition, details about the hard disk drive includes the number of hard disk read/write heads, manufacture (assembly) date, device buffer size, RPM and information / statistics about the current operating environment (temperature, humidity, power use, recording method CMR/SMR and so.

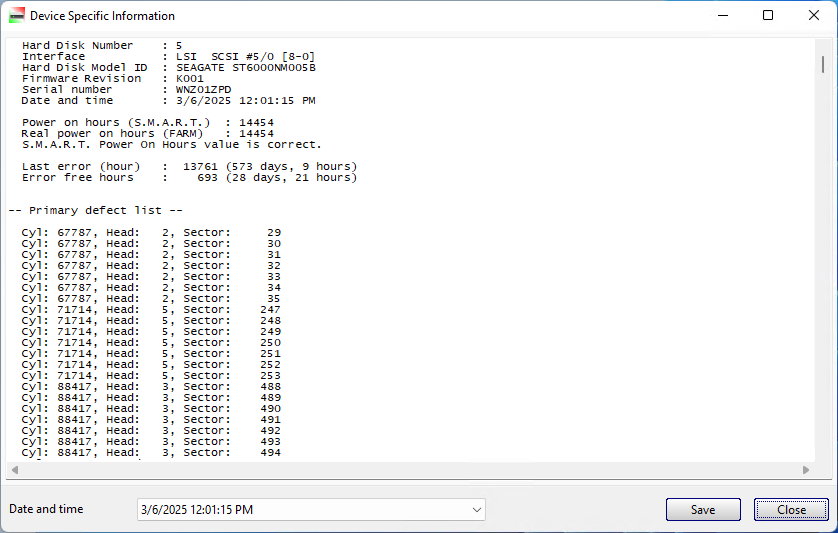

The following example is a complete Seagate Field Access Reliability Metrics log (FARM log) saved from a SEAGATE ST6000NM005B SAS hard disk drive:
Hard Disk Number : 5
Interface : LSI SCSI #5/0 [8-0]
Hard Disk Model ID : SEAGATE ST6000NM005B
Firmware Revision : K001
Serial number : WNZ01ZPD
Date and time : 3/6/2025 12:04:41 PM
Power on hours (S.M.A.R.T.) : 14454
Real power on hours (FARM) : 14454
S.M.A.R.T. Power On Hours value is correct.
Last error (hour) : 13761 (573 days, 9 hours)
Error free hours : 693 (28 days, 21 hours)
-- Primary defect list --
Cyl: 67787, Head: 2, Sector: 29
Cyl: 67787, Head: 2, Sector: 30
Cyl: 67787, Head: 2, Sector: 31
Cyl: 67787, Head: 2, Sector: 32
Cyl: 67787, Head: 2, Sector: 33
Cyl: 67787, Head: 2, Sector: 34
Cyl: 67787, Head: 2, Sector: 35
-- Grown defect list --
Cyl: 904, Head: 1, Sector: 221
Cyl: 1025, Head: 1, Sector: 444
Cyl: 1392, Head: 1, Sector: 159
Cyl: 1760, Head: 1, Sector: 252
-- Background Scan Status log --
Status: No background scan active
Accumulated power on time: 867297 minutes (14454:57)
Background scans performed: 0, scan progress: 0.00 %
Background medium scans performed: 0
No. Timestamp Sector SK,ASC,ASCQ Status Vendor Information
1 13368:16 43667959 04,09,00 Successfully reassigned 10314B4151
2 13368:33 47964087 04,09,00 Successfully reassigned 103610406B
3 13482:33 39706017 04,09,00 Successfully reassigned 102CCF41B1
4 13483:10 47982219 04,09,00 Successfully reassigned 10362E421B
5 13483:38 56530513 04,09,00 Successfully reassigned 103F9C40C1
102 13596:38 32796957 04,32,00 Reassignment by disk failed 102521416B
103 13596:38 32839147 04,32,00 Reassignment by disk failed 10252A41C4
-- Protocol Specific port log page for SAS SSP --
Relative target port ID = 1
Generation code = 0
Number of phys = 1
Phy identifier = 0
Attached device type: SAS or SATA device
attached reason: power on
reason: loss of dword synchronization
negotiated logical link rate: phy enabled; 6 Gbps
attached initiator port: ssp=1 stp=1 smp=1
attached target port: ssp=0 stp=0 smp=0
SAS address = 5000C500D8615841
attached SAS address = 500605B0044D0910
attached phy identifier = 7
Invalid DWORD count = 13
Running disparity error count = 13
Loss of DWORD synchronization = 10
Phy reset problem = 0
Phy event descriptors:
Invalid word count: 13
Running disparity error count: 13
Loss of dword synchronization count: 10
Phy reset problem count: 0
Relative target port ID = 2
Generation code = 0
Number of phys = 1
Phy identifier = 1
Attached device type: no device attached
attached reason: unknown
reason: unknown
negotiated logical link rate: phy enabled; unknown
attached initiator port: ssp=0 stp=0 smp=0
attached target port: ssp=0 stp=0 smp=0
SAS address = 5000C500D8615842
attached SAS address = 0000000000000000
attached phy identifier = 0
Invalid DWORD count = 0
Running disparity error count = 0
Loss of DWORD synchronization = 4
Phy reset problem = 0
Phy event descriptors:
Invalid word count: 0
Running disparity error count: 0
Loss of dword synchronization count: 4
Phy reset problem count: 0

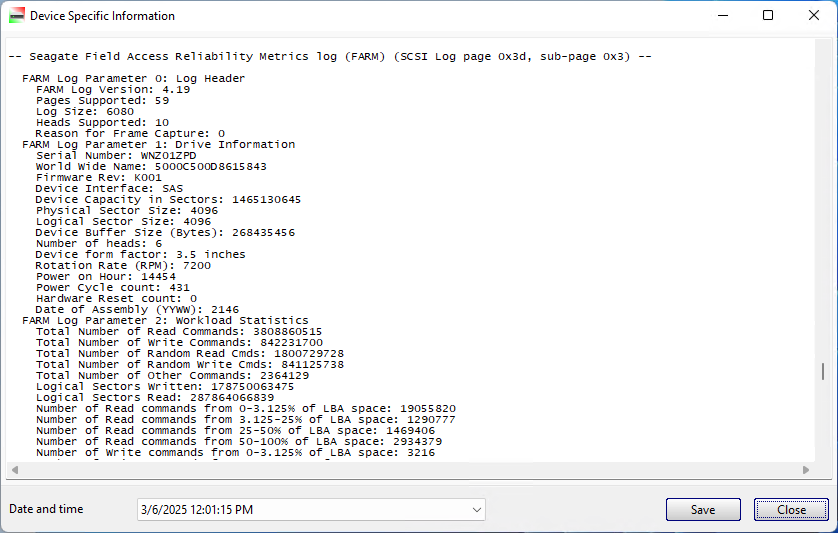

-- Seagate Field Access Reliability Metrics log (FARM) (SCSI Log page 0x3d, sub-page 0x3) --
FARM Log Parameter 0: Log Header
FARM Log Version: 4.19
Pages Supported: 59
Log Size: 6080
Heads Supported: 10
Reason for Frame Capture: 0
FARM Log Parameter 1: Drive Information
Serial Number: WNZ01ZPD
World Wide Name: 5000C500D8615843
Firmware Rev: K001
Device Interface: SAS
Device Capacity in Sectors: 1465130645
Physical Sector Size: 4096
Logical Sector Size: 4096
Device Buffer Size (Bytes): 268435456
Number of heads: 6
Device form factor: 3.5 inches
Rotation Rate (RPM): 7200
Power on Hour: 14454
Power Cycle count: 431
Hardware Reset count: 0
Date of Assembly (YYWW): 2146
FARM Log Parameter 2: Workload Statistics
Total Number of Read Commands: 3808860515
Total Number of Write Commands: 842231700
Total Number of Random Read Cmds: 1800729728
Total Number of Random Write Cmds: 841125738
Total Number of Other Commands: 2364222
Logical Sectors Written: 178750063475
Logical Sectors Read: 287864066839
Number of Read commands from 0-3.125% of LBA space: 19055820
Number of Read commands from 3.125-25% of LBA space: 1290777
Number of Read commands from 25-50% of LBA space: 1469406
Number of Read commands from 50-100% of LBA space: 2934379
Number of Write commands from 0-3.125% of LBA space: 3216
Number of Write commands from 3.125-25% of LBA space: 0
Number of Write commands from 25-50% of LBA space: 0
Number of Write commands from 50-100% of LBA space: 10

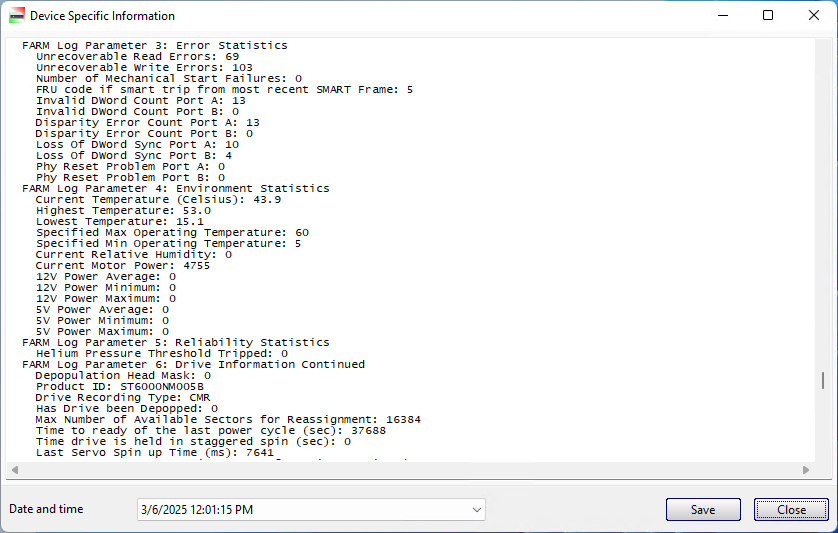

FARM Log Parameter 3: Error Statistics
Unrecoverable Read Errors: 69
Unrecoverable Write Errors: 103
Number of Mechanical Start Failures: 0
FRU code if smart trip from most recent SMART Frame: 5
Invalid DWord Count Port A: 13
Invalid DWord Count Port B: 0
Disparity Error Count Port A: 13
Disparity Error Count Port B: 0
Loss Of DWord Sync Port A: 10
Loss Of DWord Sync Port B: 4
Phy Reset Problem Port A: 0
Phy Reset Problem Port B: 0
FARM Log Parameter 4: Environment Statistics
Current Temperature (Celsius): 43.9
Highest Temperature: 53.0
Lowest Temperature: 15.1
Specified Max Operating Temperature: 60
Specified Min Operating Temperature: 5
Current Relative Humidity: 0
Current Motor Power: 4755
12V Power Average: 0
12V Power Minimum: 0
12V Power Maximum: 0
5V Power Average: 0
5V Power Minimum: 0
5V Power Maximum: 0
FARM Log Parameter 5: Reliability Statistics
Helium Pressure Threshold Tripped: 0
FARM Log Parameter 6: Drive Information Continued
Depopulation Head Mask: 0
Product ID: ST6000NM005B
Drive Recording Type: CMR
Has Drive been Depopped: 0
Max Number of Available Sectors for Reassignment: 16384
Time to ready of the last power cycle (sec): 37688
Time drive is held in staggered spin (sec): 0
Last Servo Spin up Time (ms): 7641
FARM Log Parameter 7: Environment Information Continued
Current 12 Volts (mV): 11960
Minimum 12 Volts (mV): 11749
Maximum 12 Volts (mV): 12115
Current 5 Volts (mV): 5041
Minimum 5 Volts (mV): 4838
Maximum 5 Volts (mV): 5098
FARM Log By Head Information
MR Head Resistance 0: 0
MR Head Resistance 1: 0
MR Head Resistance 2: 0
MR Head Resistance 3: 0
MR Head Resistance 4: 0
MR Head Resistance 5: 0
Number of Reallocated Sectors 0: 0
Number of Reallocated Sectors 1: 666
Number of Reallocated Sectors 2: 0
Number of Reallocated Sectors 3: 0
Number of Reallocated Sectors 4: 0
Number of Reallocated Sectors 5: 0
Number of Reallocation Candidate Sectors 0: 0
Number of Reallocation Candidate Sectors 1: 0
Number of Reallocation Candidate Sectors 2: 0
Number of Reallocation Candidate Sectors 3: 0
Number of Reallocation Candidate Sectors 4: 0
Number of Reallocation Candidate Sectors 5: 0
Write Power On (hrs) 0: 474248
Write Power On (hrs) 1: 481225
Write Power On (hrs) 2: 510132
Write Power On (hrs) 3: 492426
Write Power On (hrs) 4: 494705
Write Power On (hrs) 5: 512085
Cum Lifetime Unrecoverable Read Repeating 0: 0
Cum Lifetime Unrecoverable Read Repeating 1: 0
Cum Lifetime Unrecoverable Read Repeating 2: 0
Cum Lifetime Unrecoverable Read Repeating 3: 0
Cum Lifetime Unrecoverable Read Repeating 4: 0
Cum Lifetime Unrecoverable Read Repeating 5: 0
Cum Lifetime Unrecoverable Read Unique 0: 0
Cum Lifetime Unrecoverable Read Unique 1: 69
Cum Lifetime Unrecoverable Read Unique 2: 0
Cum Lifetime Unrecoverable Read Unique 3: 0
Cum Lifetime Unrecoverable Read Unique 4: 0
Cum Lifetime Unrecoverable Read Unique 5: 0
Second MR Head Resistance 0: 0
Second MR Head Resistance 1: 0
Second MR Head Resistance 2: 0
Second MR Head Resistance 3: 0
Second MR Head Resistance 4: 0
Second MR Head Resistance 5: 0
FARM Log Actuator Information: 0x00
Head Load Events: 6683
TimeStamp of last IDD test: 0
Sub-Command of Last IDD Test: 0
Number of Reallocated Sector Reclamations: 0
Servo Status: 0
Number of Slipped Sectors Before IDD Scan: 0
Number of Slipped Sectors Before IDD Scan: 0
Number of Resident Reallocated Sectors Before IDD Scan: 0
Number of Resident Reallocated Sectors Before IDD Scan: 0
Successfully Scrubbed Sectors Before IDD Scan: 0
Successfully Scrubbed Sectors Before IDD Scan: 0
Number of DOS Scans Performed: 42331466307
Number of LBAs Corrected by ISP: 2
Number of Valid Parity Sectors: 548118
Number of LBAs Corrected by Parity Sector: 53
FARM Log Actuator Information: 0x00
Head Load Events: 0
TimeStamp of last IDD test: 0
Sub-Command of Last IDD Test: 0
Number of Reallocated Sector Reclamations: 0
Servo Status: 0
Number of Slipped Sectors Before IDD Scan: 0
Number of Slipped Sectors Before IDD Scan: 0
Number of Resident Reallocated Sectors Before IDD Scan: 0
Number of Resident Reallocated Sectors Before IDD Scan: 0
Successfully Scrubbed Sectors Before IDD Scan: 0
Successfully Scrubbed Sectors Before IDD Scan: 0
Number of DOS Scans Performed: 0
Number of LBAs Corrected by ISP: 0
Number of Valid Parity Sectors: 0
Number of LBAs Corrected by Parity Sector: 0
FARM Log Actuator Information: 0x00
Head Load Events: 0
TimeStamp of last IDD test: 0
Sub-Command of Last IDD Test: 0
Number of Reallocated Sector Reclamations: 0
Servo Status: 0
Number of Slipped Sectors Before IDD Scan: 0
Number of Slipped Sectors Before IDD Scan: 0
Number of Resident Reallocated Sectors Before IDD Scan: 0
Number of Resident Reallocated Sectors Before IDD Scan: 0
Successfully Scrubbed Sectors Before IDD Scan: 0
Successfully Scrubbed Sectors Before IDD Scan: 0
Number of DOS Scans Performed: 0
Number of LBAs Corrected by ISP: 0
Number of Valid Parity Sectors: 0
Number of LBAs Corrected by Parity Sector: 0
FARM Log Actuator Information: 0x00
Head Load Events: 0
TimeStamp of last IDD test: 0
Sub-Command of Last IDD Test: 0
Number of Reallocated Sector Reclamations: 0
Servo Status: 0
Number of Slipped Sectors Before IDD Scan: 0
Number of Slipped Sectors Before IDD Scan: 0
Number of Resident Reallocated Sectors Before IDD Scan: 0
Number of Resident Reallocated Sectors Before IDD Scan: 0
Successfully Scrubbed Sectors Before IDD Scan: 0
Successfully Scrubbed Sectors Before IDD Scan: 0
Number of DOS Scans Performed: 0
Number of LBAs Corrected by ISP: 0
Number of Valid Parity Sectors: 0
Number of LBAs Corrected by Parity Sector: 0
FARM Log Actuator 0x00 Flash LED Information
Total Flash LED Events: 0
Index of Last Flash LED: 0
Event 0:
Event Information: 0x0000000000000000
Timestamp of Event 0 (hours): 0
Power Cycle Event 0: 0
Event 1:
Event Information: 0x0000000000000000
Timestamp of Event 1 (hours): 0
Power Cycle Event 1: 0
Event 2:
Event Information: 0x0000000000000000
Timestamp of Event 2 (hours): 0
Power Cycle Event 2: 0
Event 3:
Event Information: 0x0000000000000000
Timestamp of Event 3 (hours): 0
Power Cycle Event 3: 0
Event 4:
Event Information: 0x0000000000000000
Timestamp of Event 4 (hours): 0
Power Cycle Event 4: 0
Event 5:
Event Information: 0x0000000000000000
Timestamp of Event 5 (hours): 0
Power Cycle Event 5: 0
Event 6:
Event Information: 0x0000000000000000
Timestamp of Event 6 (hours): 0
Power Cycle Event 6: 0
Event 7:
Event Information: 0x0000000000000000
Timestamp of Event 7 (hours): 0
Power Cycle Event 7: 0
FARM Log Actuator 0x00 Flash LED Information
Total Flash LED Events: 0
Index of Last Flash LED: 0
Event 0:
Event Information: 0x0000000000000000
Timestamp of Event 0 (hours): 0
Power Cycle Event 0: 0
Event 1:
Event Information: 0x0000000000000000
Timestamp of Event 1 (hours): 0
Power Cycle Event 1: 0
Event 2:
Event Information: 0x0000000000000000
Timestamp of Event 2 (hours): 0
Power Cycle Event 2: 0
Event 3:
Event Information: 0x0000000000000000
Timestamp of Event 3 (hours): 0
Power Cycle Event 3: 0
Event 4:
Event Information: 0x0000000000000000
Timestamp of Event 4 (hours): 0
Power Cycle Event 4: 0
Event 5:
Event Information: 0x0000000000000000
Timestamp of Event 5 (hours): 0
Power Cycle Event 5: 0
Event 6:
Event Information: 0x0000000000000000
Timestamp of Event 6 (hours): 0
Power Cycle Event 6: 0
Event 7:
Event Information: 0x0000000000000000
Timestamp of Event 7 (hours): 0
Power Cycle Event 7: 0
FARM Log Actuator 0x00 Flash LED Information
Total Flash LED Events: 0
Index of Last Flash LED: 0
Event 0:
Event Information: 0x0000000000000000
Timestamp of Event 0 (hours): 0
Power Cycle Event 0: 0
Event 1:
Event Information: 0x0000000000000000
Timestamp of Event 1 (hours): 0
Power Cycle Event 1: 0
Event 2:
Event Information: 0x0000000000000000
Timestamp of Event 2 (hours): 0
Power Cycle Event 2: 0
Event 3:
Event Information: 0x0000000000000000
Timestamp of Event 3 (hours): 0
Power Cycle Event 3: 0
Event 4:
Event Information: 0x0000000000000000
Timestamp of Event 4 (hours): 0
Power Cycle Event 4: 0
Event 5:
Event Information: 0x0000000000000000
Timestamp of Event 5 (hours): 0
Power Cycle Event 5: 0
Event 6:
Event Information: 0x0000000000000000
Timestamp of Event 6 (hours): 0
Power Cycle Event 6: 0
Event 7:
Event Information: 0x0000000000000000
Timestamp of Event 7 (hours): 0
Power Cycle Event 7: 0
FARM Log Actuator 0x00 Flash LED Information
Total Flash LED Events: 0
Index of Last Flash LED: 0
Event 0:
Event Information: 0x0000000000000000
Timestamp of Event 0 (hours): 0
Power Cycle Event 0: 0
Event 1:
Event Information: 0x0000000000000000
Timestamp of Event 1 (hours): 0
Power Cycle Event 1: 0
Event 2:
Event Information: 0x0000000000000000
Timestamp of Event 2 (hours): 0
Power Cycle Event 2: 0
Event 3:
Event Information: 0x0000000000000000
Timestamp of Event 3 (hours): 0
Power Cycle Event 3: 0
Event 4:
Event Information: 0x0000000000000000
Timestamp of Event 4 (hours): 0
Power Cycle Event 4: 0
Event 5:
Event Information: 0x0000000000000000
Timestamp of Event 5 (hours): 0
Power Cycle Event 5: 0
Event 6:
Event Information: 0x0000000000000000
Timestamp of Event 6 (hours): 0
Power Cycle Event 6: 0
Event 7:
Event Information: 0x0000000000000000
Timestamp of Event 7 (hours): 0
Power Cycle Event 7: 0
FARM Log Actuator 0x00 Reallocation
Number of Reallocated Sectors: 0
Number of Reallocated Candidate Sectors: 0
FARM Log Actuator 0x00 Reallocation
Number of Reallocated Sectors: 0
Number of Reallocated Candidate Sectors: 0
FARM Log Actuator 0x00 Reallocation
Number of Reallocated Sectors: 0
Number of Reallocated Candidate Sectors: 0
FARM Log Actuator 0x00 Reallocation
Number of Reallocated Sectors: 0
Number of Reallocated Candidate Sectors: 0
Looking forward to detect and report additional details and ideally hard disk drives of other manufacturers will provide same level (or similar) details like the Seagate Field Access Reliability Metrics log (FARM log) Hard Disk Sentinel can detect from the supported Seagate hard disk drives.
